Instrumentation

Tube Fittings::

Single Ferrule Fittings : 1/16” to 2-1/2”

Double Ferrule Fittings : 1/16” to 2-1/2”

Material of Construction : Stainless Steel.

General Features

Male threads are protected with plastic ebd caps

Ferrule Fittings are also available in Metric Sizes

Standards : ANSI B31.1 , ANSI B 1.20.1, ISO Parllel threads, BSP, NPT,BSPT, SAE/MS, UNF, Metric & other Threads

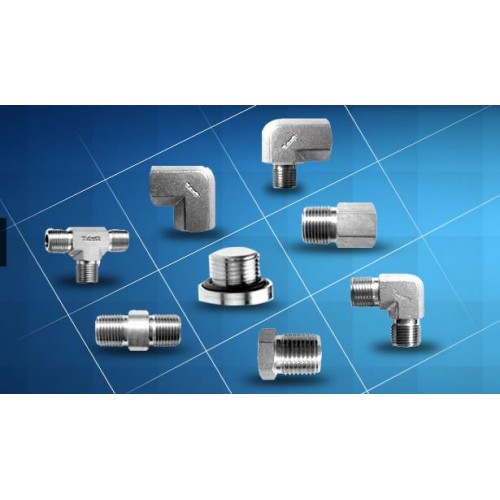

Pipe Fittings::

General & Precision Types

Size Range : 1/16” to 2-1/2”

Material of Construction : Stainless Steel.

General Features

Male threads are protected with plastic ebd caps

Ferrule Fittings are also available in Metric Sizes

Standards : ANSI B31.1 , ANSI B 1.20.1, ISO Parllel threads, BSP, NPT,BSPT, SAE/MS, UNF, Metric & other Threads

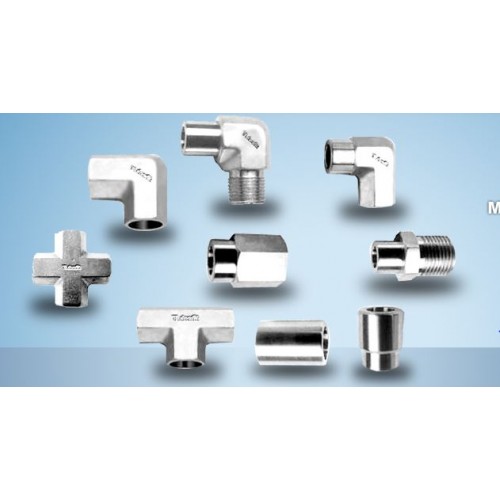

Weld Fittings::

General & Precision Types

Size Range : 1/16” to 2-1/2”

Material of Construction : Stainless Steel.

General Features

Male threads are protected with plastic ebd caps

Ferrule Fittings are also available in Metric Sizes

Standards : ANSI B31.1 , ANSI B 1.20.1, ISO Parllel threads, BSP, NPT,BSPT, SAE/MS, UNF, Metric & other Threads

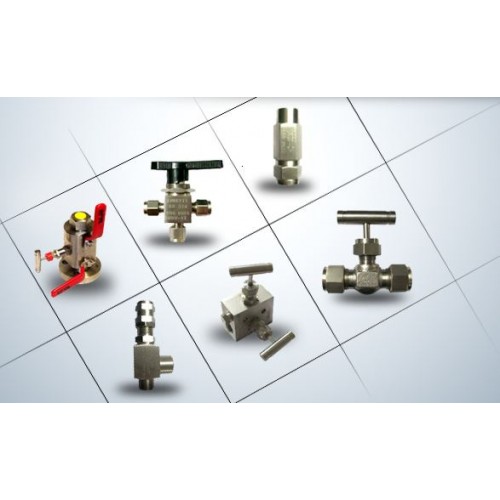

Instrumentation Valves::

Needle Valve

Ball Valve

Gauge & Gauge Root Valve

Plug Valve

Non Return Valve

Double Block & Bleed Valve

Mono Flange Valve

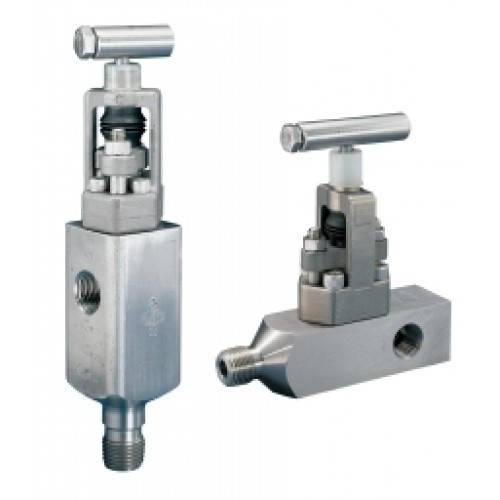

Needle Valve::

Features :

Barstock

High Pressure

Screwed Bonnet

Integral Bonner

With bleed Plug

Multi Way

Size Range :     1/8” to 2”

Maximum working Pressure : 20,000 PSIG

Plug Valves::

Size Range :     1/8” to 2”

Maximum working Pressure : 10,000 PSIG

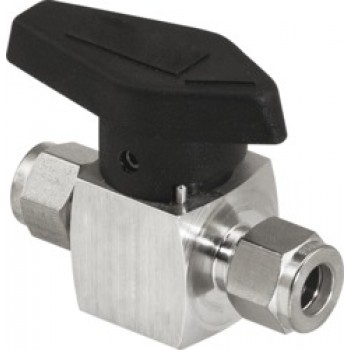

Ball Valve::

Features :        2/3/4/5/7 Ways

Male/Female Threaded Ends

Full / Port Designs

Size Range :     1/8” to 2”

Maximum working Pressure : 10,000 PSIG
